1.Introduction

[Overview]

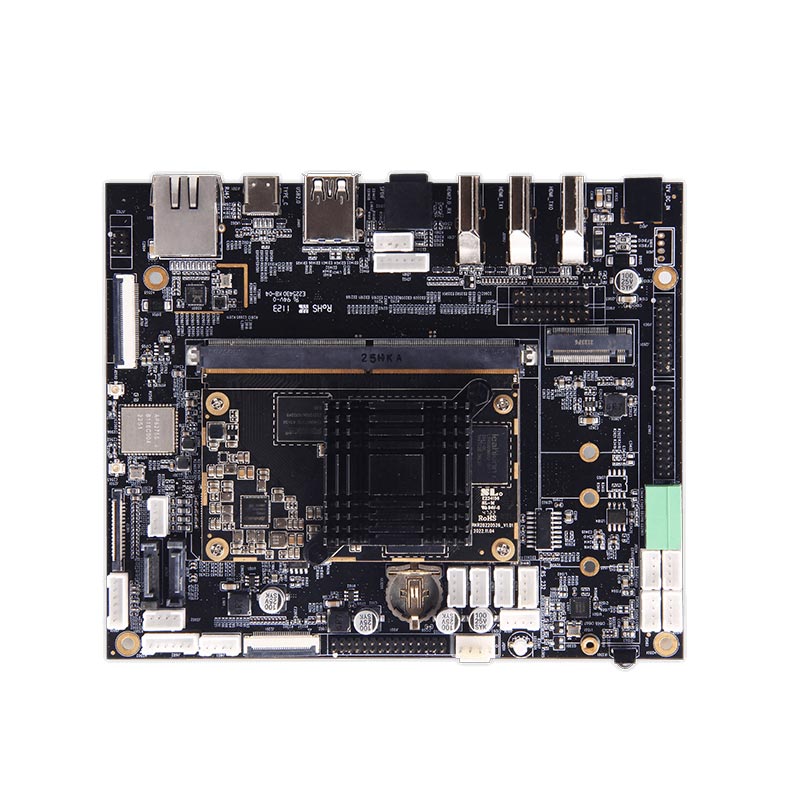

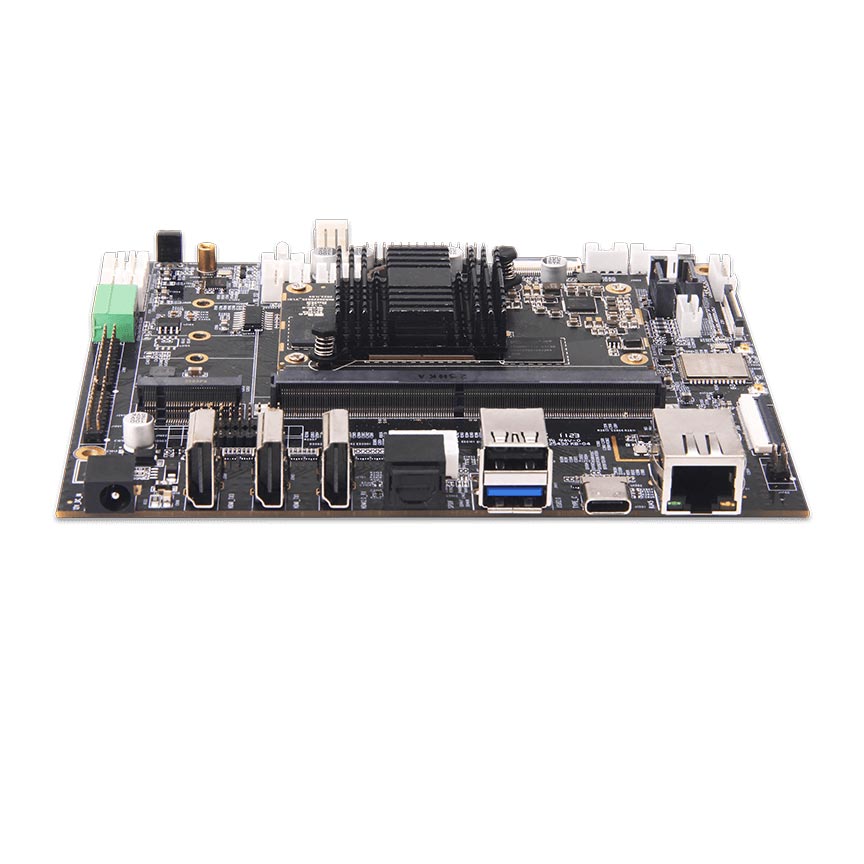

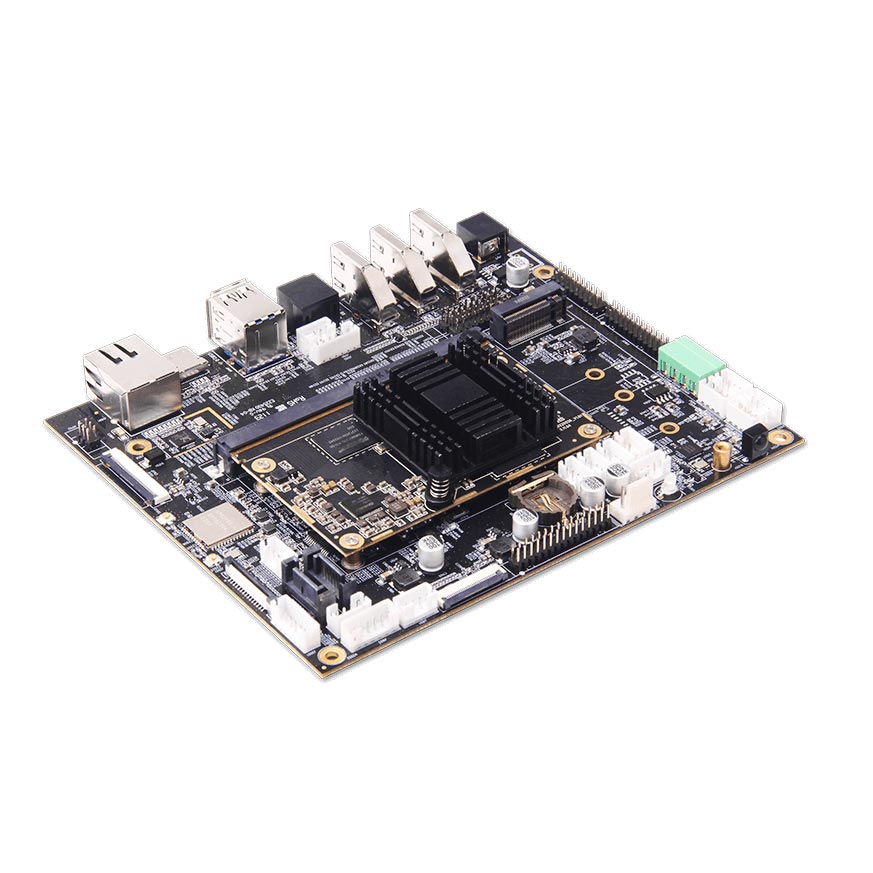

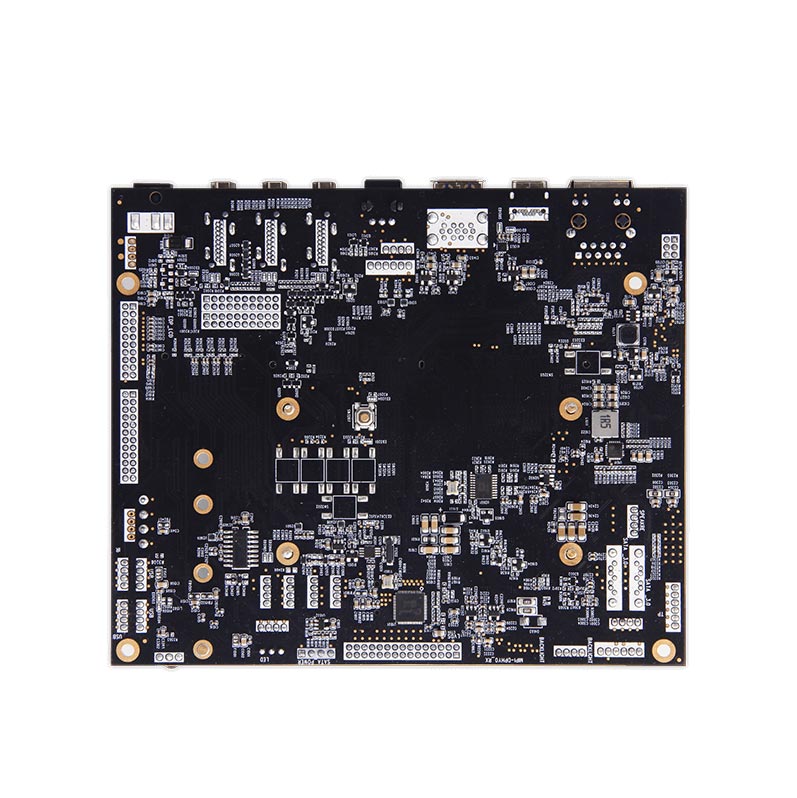

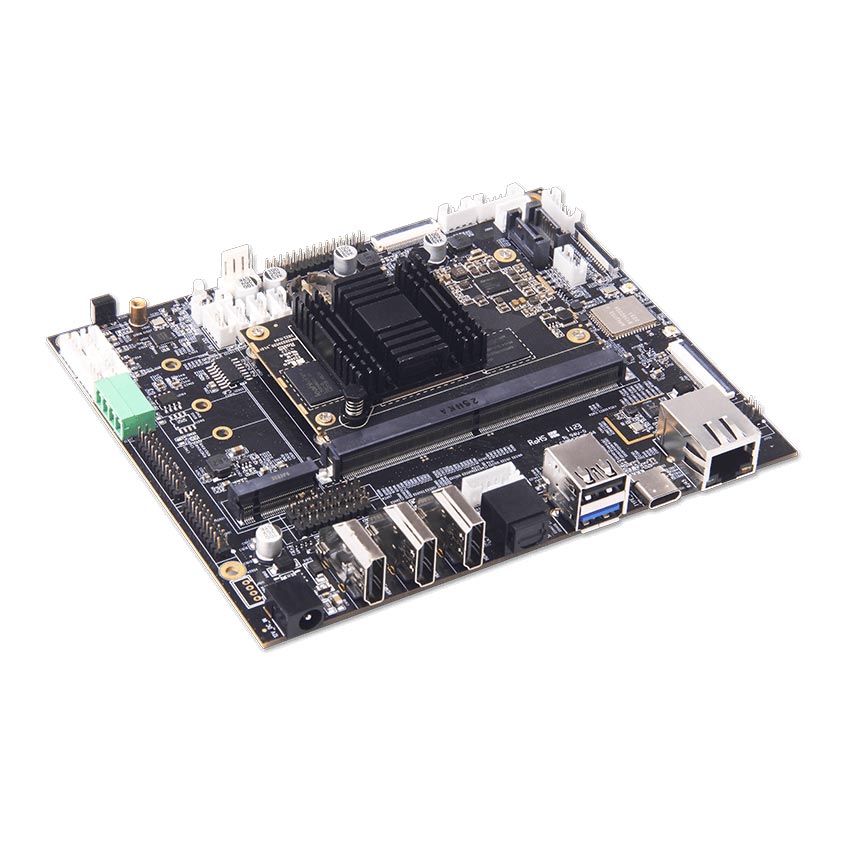

AIWEDO AIE-JR588 AI edge computing development board features RockChip’s RK3588 chip with a 6Tops NPU, with 10+ years delivery period, and comprehensive technical information. Supporting multiple operating systems, it provides strong performance, stable and reliable product support with strong scalability for various AI application scenarios.Rockchip RK3588 new generation flagship octa-core 64-bit processor, which can be equipped with a maximum of 32GB large memory; Support 8K video codec; It has rich interfaces, supporting multiple hard disks, gigabit network, WiFi6, 5G/4G expansion and a variety of video input and output; Support for multiple operating systems; It can be applied to ARM PC, edge computing, cloud server, intelligent NVR, smart large screen, AR/VR, smart car and other fields; RK3588 is Rockchip’s new generation flagship AIoT chip, using 8nm LP process; Equipped with eight-core 64-bit CPU with a main frequency of up to 2.4GHz, an integrated ARM Mali-G610 MP4 quad-core GPU, and built-in AI accelerator NPU, which can provide 6Tops computing power and support mainstream deep learning frameworks; The powerful RK3588 can bring more optimized performance for various AI application scenarios. Support 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding, support simultaneous compilation and solution, up to 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding; Powerful video encoding and decoding capabilities can make the picture 8K high-definition presentation, and the picture quality is more delicate; It can be equipped with up to 32GB of ultra-large running memory, which surpasses the capacity limitation of previous memory and has faster response speed, which can meet the application requirements of products with high memory requirements and large storage capacity; With HDMI 2.1/eDP1.3/MIPI-DSI/DP1.4/BT.1120 multi-channel video output and HDMI RX2.0/MIPI-CSI/DVP video input interface, it supports multiple 8K video output and 4K video input, and can achieve up to seven-screen display; Integrated 48MP ISP with HDR&3DNR, support dual MIPI-CSI camera inputs; Integrated PCIe3.0/GMAC/SDIO3.0/USB3.0, scalable multi-channel Gigabit Ethernet, WiFi6/Bluetooth, 5G/4G LTE, so that network communication has higher speed; SSD/HDD mass storage devices that can be expanded with multiple PCIe3.0/SATA3.0 devices at the same time, allowing devices to easily expand to terabyte-level ultra-large capacities. It has PCIE3.0, SATA3.0, I2S, I2C, CAN, UART, SPDIF, SDIO3.0, MIPI-CSI, MIPI-DSI, USB3.0, USB2.0, SPI, GPIO and other expansion interfaces;

[Specifications]

SOC	RockChip RK3588
CPU	Rockchip RK3588 Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55), 8nm advanced process, main frequency up to 2.4GHz
GPU	ARM Mali-G610 MP4 quad-core GPU OpenGL ES3.2 / OpenCL 2.2 / Vulkan 1.1, 450 GFLOPS are supported
NPU	NPU computing power up to 6 TOPS, support INT4/INT8/INT16 hybrid operations, can realize network model transformation based on TensorFlow / MXNet / PyTorch / Caffe and other series of frameworks
ISP	Integrate 48MP ISP with HDR&3DNR
VPU	Video Decoding: 8K@60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps encoding, support H.265/H.264 * Up to 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps-encoded video decoding
memory	4GB/8GB/16GB LPDDR4x
storage	32GB/64GB/128GB eMMC
Ethernet	Dual Gigabit Ethernet（1000 M bps + 2.5G）
wireless network	Support Mini PCIe Expansion 5G support Dual band WiFi6 , support BT5.0, dual antenna
Display interfaces	1 × HDMI 2.0 with 4K@60fps output 1 × HDMI 2.1, supports 8K@60fps output2 × MIPI DSI, supports 4K@60fps output 1 × eDP1.3 with 4K@60fps output
Audio interface	1 × Speaker, 1 × Headphone Output 1 × HDMI 2.0 audio output 1 × HDMI 2.1 audio output 1 × MIC input 1 × LINE IN input
Camera	Supports 2 * MIPI-CSI and 1 * HDMI IN input
USB interface	5CH USB2.0 HOST, 1CH USB3.0 HOST, 1CH USB TYPEC
Serial	1 × CAN，2 × 232,1 × RS485，1 X TTL debug serial port
Storage expansion	PCIE NVMe M.2 interface，TF SLOT
Extension interfaces	PCIe3.0 * 4 ； 12V/5V/3.3V Power supply output interface；
System support	Support Android 12.0 ，Linux Buildroot，Ubuntu，Debian
Core board size	82 * 60 mm
Base plate size	The board layer is 4 layers, and the size is 175*115 mm
Backplane power supply	12V/2A above
Operating temperature	-10℃～ 60℃
Storage temperature	-20℃～ 70℃
Storage humidity	10%～ 80 %

2.CPU block diagram
