1.Introduction

[Overview]

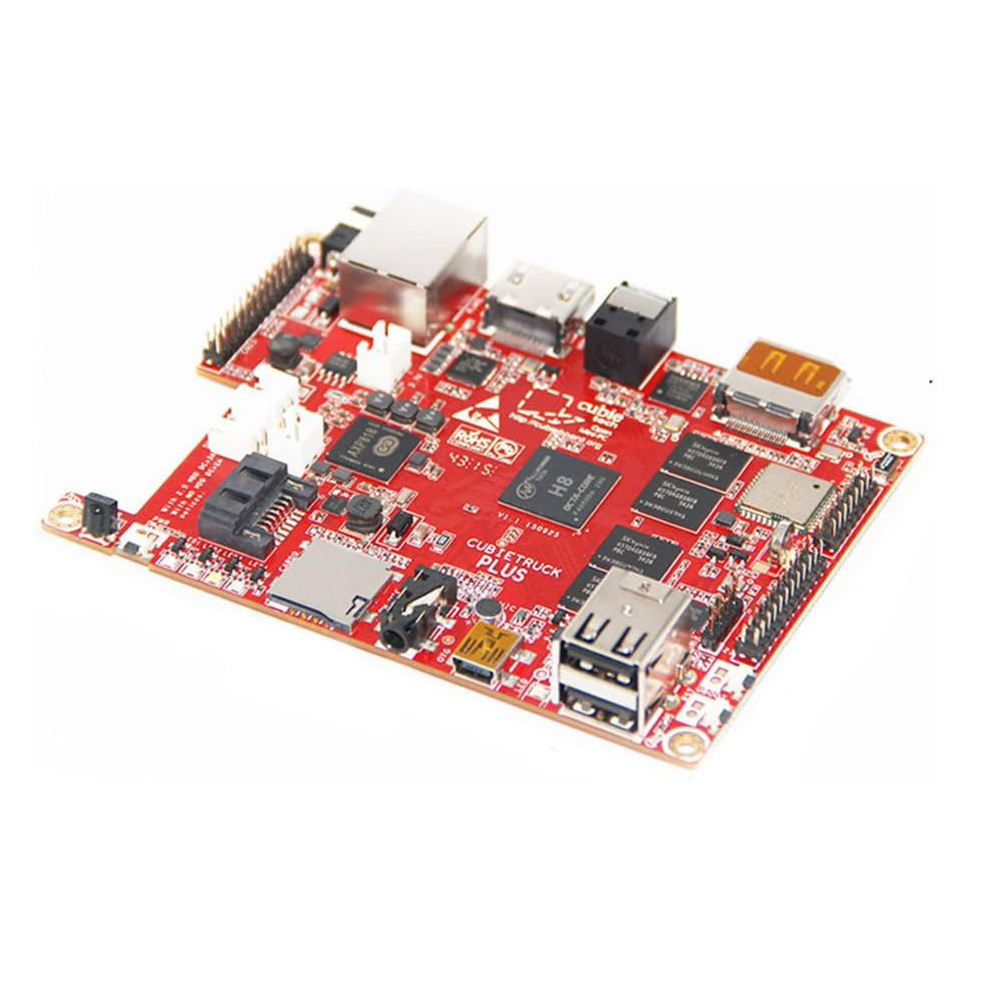

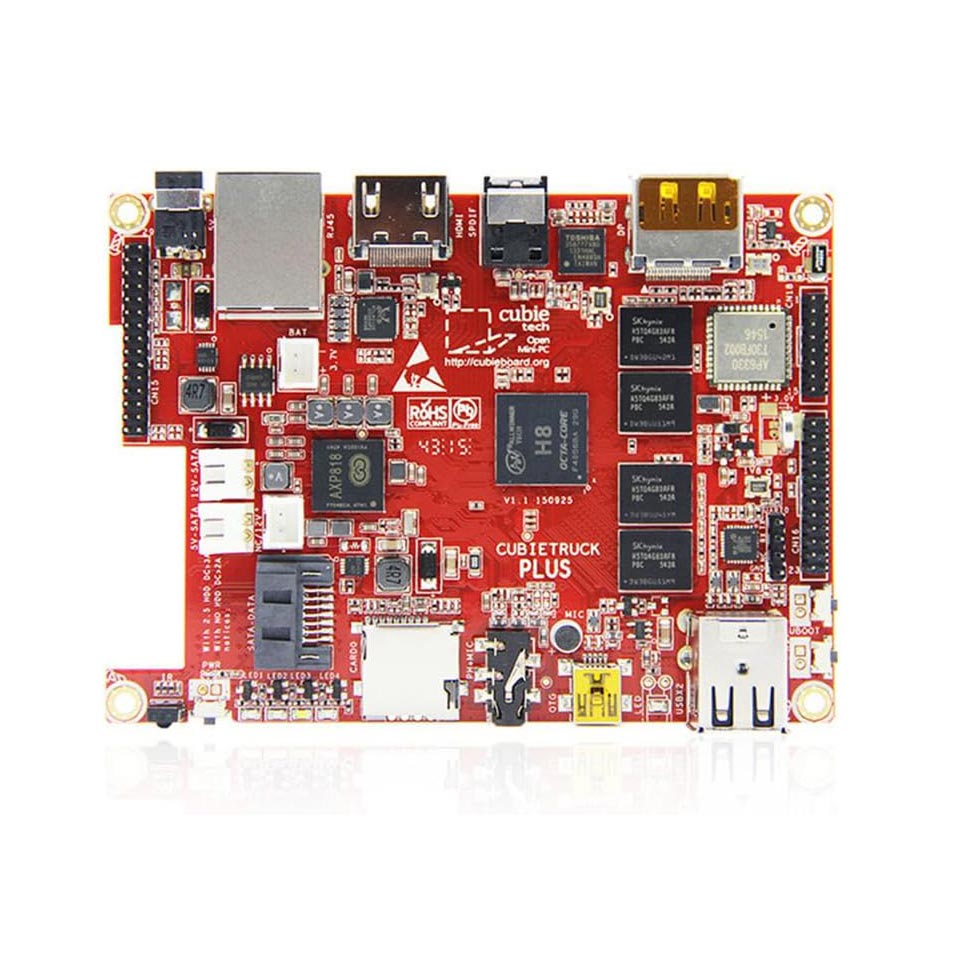

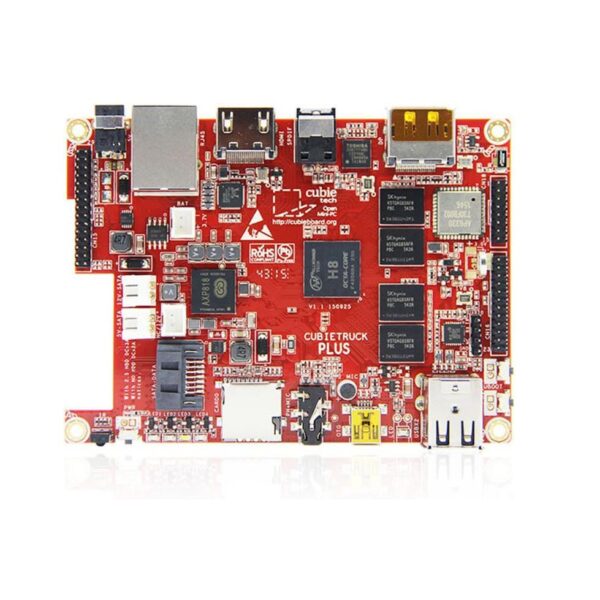

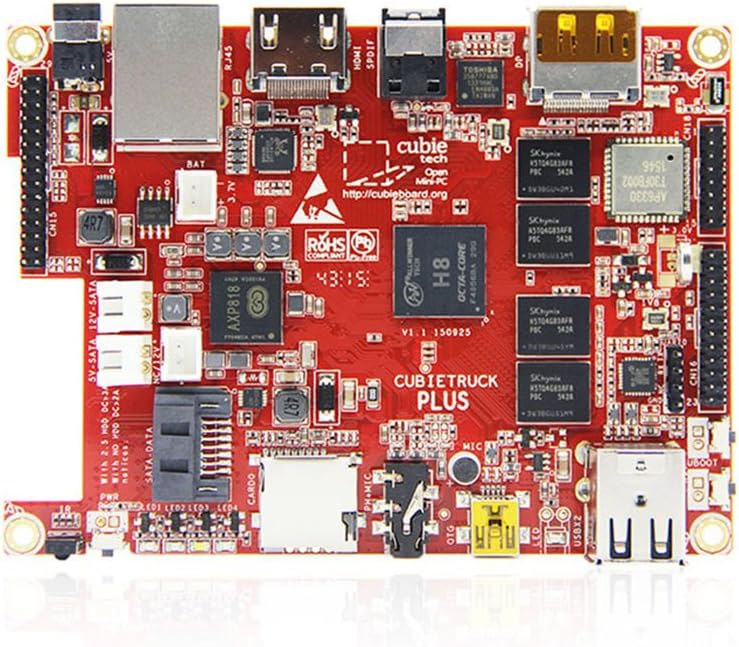

SBC computer with SoC Allwinner H8 (8-core Cortex-A7 2 GHz, PowerVR SGX544MP) equipped with: in 2 GB RAM memory, 8 GB eMMC memory, WiFi a / b / g / n, Bluetooth, SATA 2.0 interface.

[Specifications]

properties

SoC Allwinner H8 (8-core Cortex-A7 2 GHz, PowerVR SGX544MP)
RAM memory: 2 GB DDR3
Power supply: 5 V DC, mini-USB socket, LiPo 1S 3.7 V battery
Ethernet: 10M / 100M / 1000M
WiFi a / b / g / n 2.4 GHz / 5 GHz
EMMC memory: 8 GB
SATA 2.0 interface
Micro-SD card slot
Video interfaces: HDMI, DisplayPort
Audio interfaces: HDMI, Toslink, anlalog
Built-in microphone
Two USB 2.0 HOST ports
One USB 2.0 OTG port
RTC backup battery
Buttons: reset, user, u-boot
4 user diodes
Infrared receiver

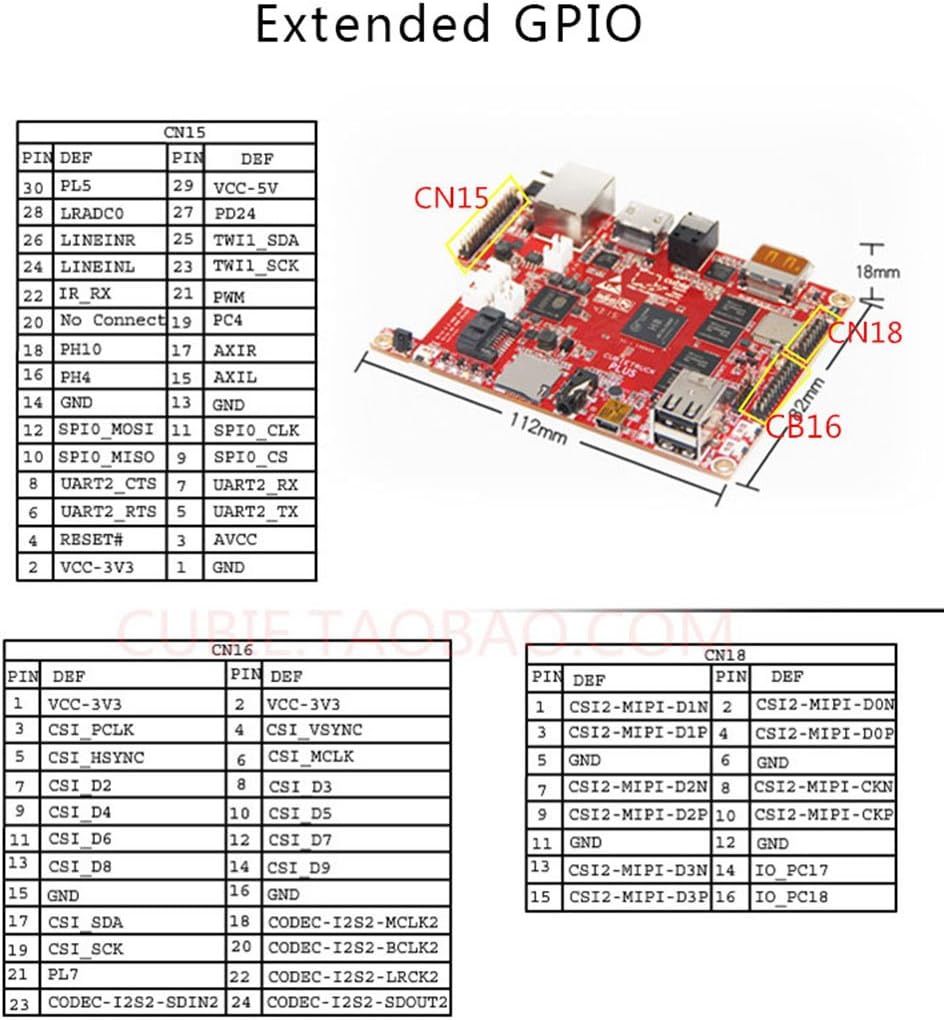

70-pin extension connector
Size: 112 x 82 x 18 mm
Weight: 425 g

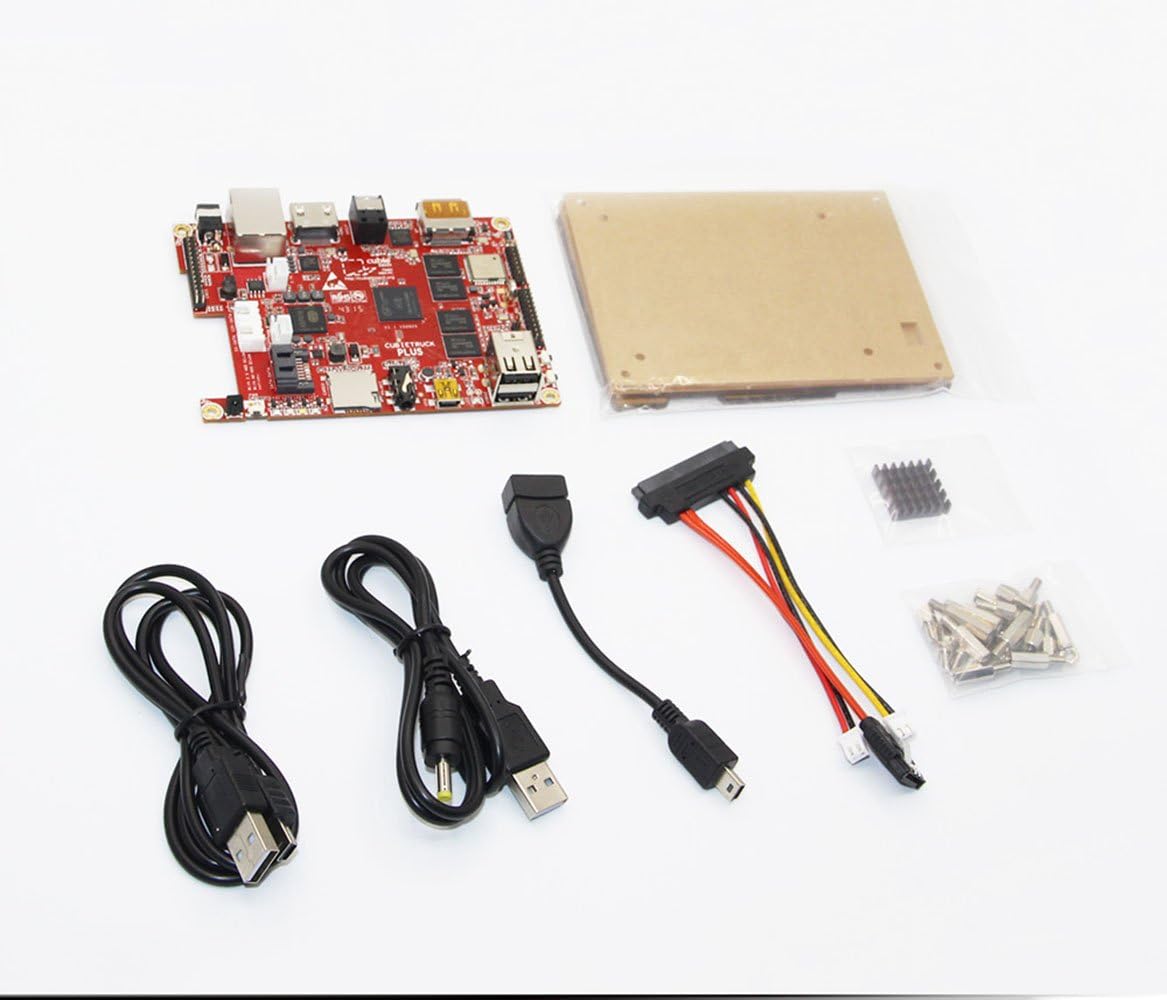

Included

Computer Cubieboard 5 (CubieTruck Plus)
USB OTG cable: mini-B – A (socket)
Mini-USB cable: A – mini-B
Power cable: USB-A – power plug
SATA disk cable (data + power supply)
Radiator
Housing

2.CPU block diagram
