PRODUCT DETAIL
1.1. Introduction
AIWEDO RK3288 V5.32 Android integrated board, is based on Rockchip micro RK3288 Cortex-A17 quad-core chip solution, frequency up to 1.6GHz,it has excellent image processing and computing performance,able to meet a variety of requirements,such as human-machine interaction, game play, video play, industrial control etc; the board has multiple interfaces and I / O, which is capable of be connected to various external devices.
1.2. Characteristics
High performance: The 1.6GHz main frequency can process a variety of tasks quickly, and the
ali-T764 GPU enhances support for different APIs, including OpenCL 1.1, DirectX 11.1, and Renderscript.
Multiple interface: It has USB port/ serial port/ I2C/SPI/ ADC/GPIO, suitable for common devices on the market.such as card swiping equipment, printing equipment and so on.
Excellent performance: Support horizontal and vertical screen play, dual-screen same display,
ual-screen different display, remote control,VGA/HMDI etc.
System customization: support Android system optimization customization, provide system interface API code.

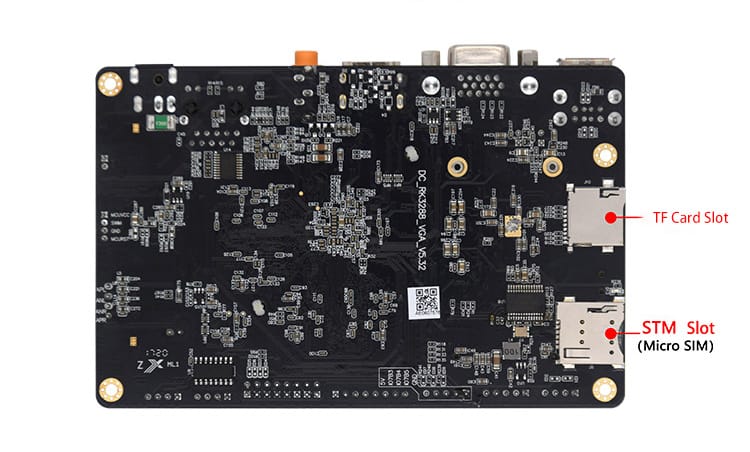

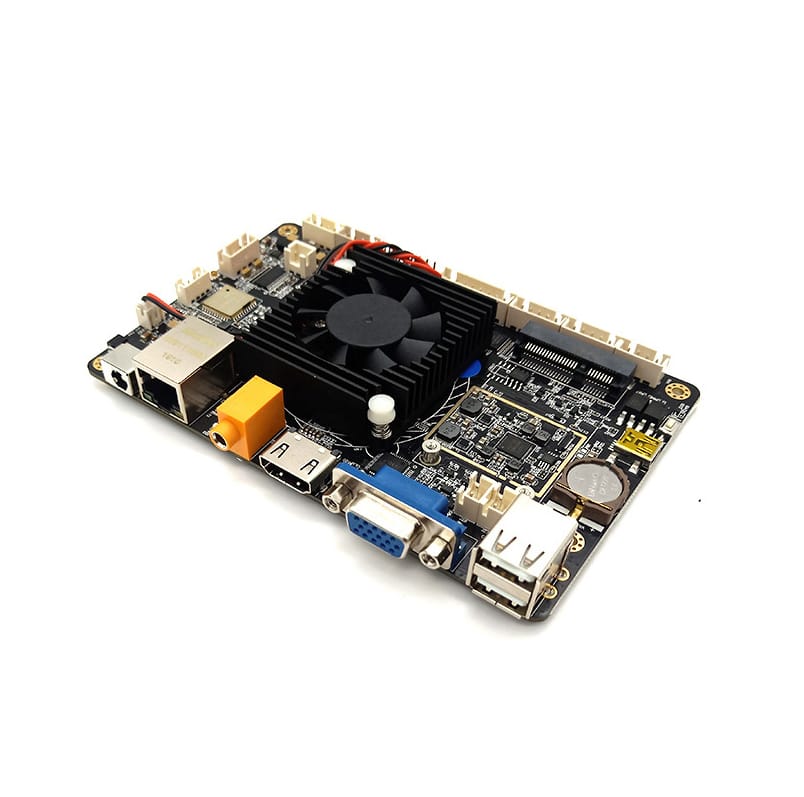

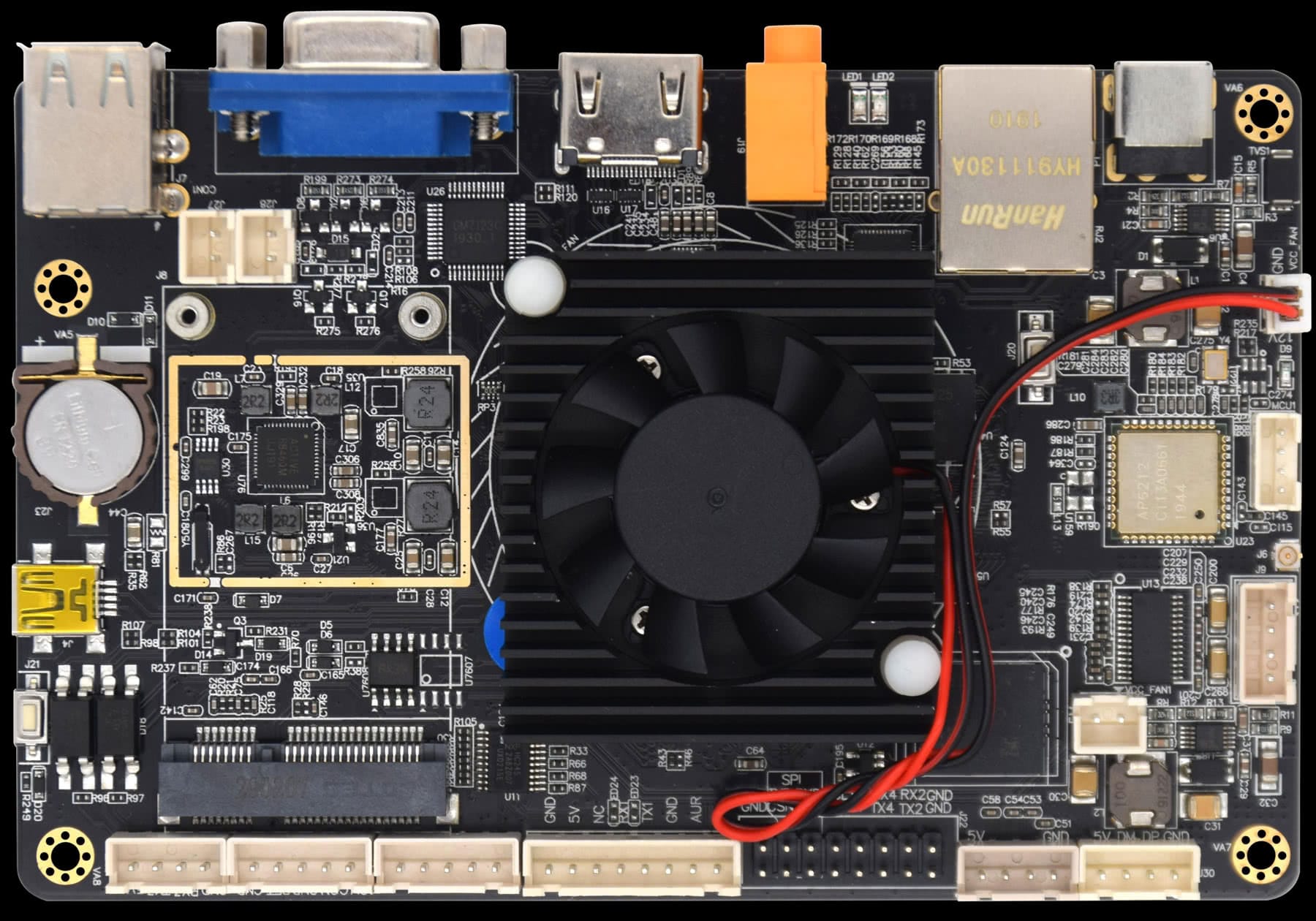

2.Appearance and Port Description
3.List of Basic Functions
| Core Components |
| CPU |
The RK3288 quad-core 32-bit ARM Coretex-A17 kernel architecture, with a 28nm
process design, runs with a main frequency of 1.6GHz |
| GPU |
Mali-T764 GPU, supports AFBC (frame buffer compression), OpenGL ES 1.1/2.0/3.1,
OpenCL, DirectX9.3, and embedded high-performance 2D acceleration hardware |
| RAMA |
1GB/2GB(Default)/4GB |
| Flash memory |
eMMC 8G(Default)/16/32G/64G(optional) |
| Memory expansion |
Up to 128GB of TF card extensions are supported |
| Display Interface |
| HDMI OUT |
HDMI2.0 supports a maximum of 3840×2160 output |
| VGA OUT |
VGA video interface, up to 1920×1080@60fps |
| Audio Interface |
| MIC interface |
1-channel microphone input interface |
| Amplifier |
Left and right dual-channel output, support 8 Ω 10W dual speakers |
| Network Support |
| Ethernet |
1-Standard RJ45 interface, 10/100/1000M Adaptive Ethernet |
| Wifi/Bluetooth |
On-board WIFI / BT module, with WiFi 2.4GHz / 5GHz (5GHz option), 802.11a/b/g/n/ac
protocol, and Bluetooth 4.0 (BLE support) |
| Mobile Network |
One built-in MINI PCI_E seat slot to expand the connection to the 3G / 4G module |
| Basic Interface |
| USB2.0 |
4-USB Host interfaces(1*USB socket,1*2.54mm-4P,1*2.54mm-2P） for external
high-definition USB camera, U disk, keyboard and mouse and other devices |
| USB OTG |
Used to debug the system, update the firmware, can also be used in Host mode |
| Serial port |
5-serial ports , including 4*TTL and 1*multiplexed RS232 serial ports |
| GPIO interface |
Provides 5 IO ports for free definition of input and output status |
| RTC |
Support for real-time clock, 1220 button battery power supply |
| SPI interface |
Support standard SPI interface |
| IIC interface |
Support standard I2C interface |
| Other |
| Operating system |
Android 5.1/Android 7.1/Android 11/debian/ubuntu18.04/buildroot |
| Power socket |
1* DC 12V Input(DC-5.5*2.5MM) |
| Adaptive |
12V 2-5A |
| System Update |
Support PC/U disk/TF card |
| Working Environment |
| working
temperature |
0℃～70℃，recommended 5℃～35℃ |
| working humidity |
10％～90％，no condensation |
| Storage
Temperature |
-30℃～75℃，recommended storage at room temperature |
